Measuring gas pressure

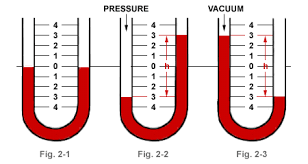

A manometer is an device employed to measure pressure. There are a variety of manometer designs. A simple, common design is to seal a length of glass tubing and bend the glass tube into a U-shape. The glass tube is then filled with a liquid, typically mercury, so that all trapped air is removed from the sealed end of the tube.

This method for measuring pressure led to the use of millimeters of mercury (mm Hg) as a unit of pressure. Today 1 mm Hg is called 1 torr. A pressure of 1 torr or 1 mm Hg is literally the pressure that produces a 1 mm difference in the heights of the two columns of mercury in a manometer.

Try reading a manometer here.
